The Leica Tri Elmar 28-35-50 f/4 Aspherical (MATE) Lens Review
By Ashwin Rao
Hello, everyone. It’s Ashwin, here with a review for you all of one of the true engineering gems in Leica’s lens lineup, the Leica Tri-Elmar 28-35-50 mm f/4 aspherical lens, affectionately known as the MATE. In case you are wondering, “MATE” stands for “Medium Angle Tri Elmar”, in comparison to Leica’s 16-18-21 Wide Angle Tri Elmar, which is known as the WATE, which Steve favorably reviewed HERE.
History of the MATE
The MATE was produced for just 9 years, from 1998 through 2007, which is quite a short period as far as M-lenses are concerned. It was produced in 3 versions. The first version of the MATE utilized a E55 filter thread, while the later 2 versions were produced with a E49 filter thread. Over the course of its lifetime and through its 3 iterations, the optical formula of the lens remained unchanged, but cosmetics, lens barrel coatings, and functionality were improved. Some have suggested that there were other changes made to reduce the amount that this lens tended to flare at its 50 mm focal length setting, which is an issue frequently encountered in the first version (E55) of this lens.
During its production run, the MATE was considered a “statement” of Leica’s engineering prowess. A simple look at the cross section of this lens suggests its complexity of design and manufacture. Combined with the expensive cost of some of its optical elements, its complicated design and manufacturing time likely lead to its halted production.
There are a lot of anecdotal reports and quotes from Leica representatives and the forums as to why this very useful lens ended its run rather suddenly. The general consensus is that the front element, which was manufactured by Hoya, became either too rare or prohibitively expensive to justify continued production of this lens, and at last inquiry, Leica has no plans to commence production of this lens in the future.
Thus, the Leica MATE remains a heritage lens, but one with its inherent benefits, if you can get a hold of one.
My attention was drawn to the MATE about a year ago, when the Leica M9 was released. In the film days, where everything was “full frame” (i.e. 35 mm film), the MATE was seen as a great performer with a useful focal length range of 28-50 mm, making it Leica’s version of a normal zoom lens. However, with the introduction of the M8 and its 1.3x crop sensor, the MATE’s focal length range became a bit funky (36-65 mm) , and it seemed to fall out of favor with many photographers. With the return of full frame in the Leica M9, the MATE regained its native focal lengths, and in essence, its intended use.
The Technical Details

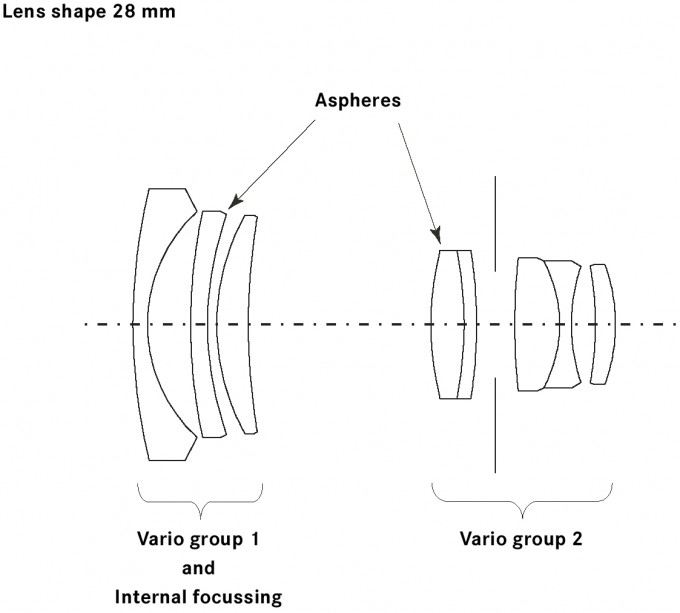

The Leica MATE is an elegant design that includes 2 aspherical elements and 2 lens groups which move in position with respect to one another to permit its 3 focal length settings. Many have questions as to whether the MATE’s design is a true continuous zoom. Erwin Puts has stated that the MATE is in fact a true optical zoom lens. However, there are some complications in defining this lens as a zoom lens in the traditional sense. First, The lens moves in focal length from 28 mm to 50 mm, and then to 35 mm focal lengths. One can imagine that such as design would make it hard to predict what focal length the lens is actually zoomed to when between these stepped detents. Further, given that Leica only has optical frame lines for 28, 35, and 50 mm settings, the focal lengths between these settings are not easily interpretable. Thus, while the MATE may mechanically represent a zoom lens, in function, it is only useful to think of this lens as a step zoom design. To boil it down simply, it really only can be used at 3 focal lengths, 28 mm, 35 mm, and 50 mm.
The MATE is composed of 8 elements, organized into 6 groups. It can focus down to 1 meter at each of its focal lengths. Maximal aperture is f/4, while the lens can be stopped down to f/22. It’s f/4 maximum aperture lens the MATE to primarily daytime use, given current limitations in ISO reach for both film and digital cameras (M9’s max ISO is 2,500, and B&W film typically tops out at ISO 3200). At 340 g (12 oz) and 67.8 mm length, it is realitively long for a Leica design, but relatively light for its size. Once you factor in that this really is 3 focal lengths in one design, it becomes far more attractive as a travel lens option. It was made available, especially in later iterations, in both black and chrome versions, though Black versions were produced in larger numbers.
For those of you tech spec nuts out here, here are some technical details for this lens (available on the Leica Wiki site)
Leica Order No. – 11 890 (1st) – 11 625 (2nd + 3rd) – 11 894-chrom / LLC – 132
Production era 1998-2007
Variants – E55 1st version; Body change 2nd version E49-A53, “Improved Mount Redesign” E49-A53 3rd version after Serial No. 3507451 – Black and Chrome versions (black lens shown on left is the E49-A53 version)
Lens mount – Leica M-bayonet
Number of lenses/groups – 8 /6
Focusing range – 1 m / 3.3 ft < ∞
Aperture range – f/4-f/22
Smallest object field – 28 mm focal length: 750 x 1130 mm, 35 mm focal length: 620 x 930 mm, 50 mm focal length: 430 x 650 mm
Reproduction ratio – 28: 1:31 – 35: 1:26 – 50: 1:18
Angle of view (diagonal/horizontal/vertical) – 28 mm: 75° / 65° / 46° – 35 mm: 63° / 54° / 38° – 50 mm: 47° / 40° / 27°
Position of entrance pupil –
Scales – Combined meter/feet graduation
Filter mount – E55 (1st) – E49-A53 (2nd)
Accessories – Hood: 1st 12458 2nd or (Redesign – 3rd) version 12450
Viewfinder – 12011
Materials – Anodized aluminum and optical glass
Length to bayonet flange 67.8 mm / 2.7 in
Largest diameter 55 mm / 2.2 in
Weight – 340 g / 12 oz
My thoughts and “review’
The Leica 28-35-50 mm f/4 asph is a brilliant lens. Other than its wide angle cousin, the WATE, there are no other lenses manufactured by Leica that function as step zooms. One might wonder whether the MATE can hold its own, in terms of optical performance, against Leica’s wonderful prime lenses. If one is coming from the world of SLR’s, he or she would know that Canon and Nikon prime lenses optically outshine their zoom counterparts quite dramatically (well, that’s my opinion at least), so what about the MATE? Well, I am here to say that the Tri-Elmar really competes optically with its Leica prime lens counterparts. It presents a sharply rendered image, with pleasing out-of focus elements, when shot wide open. It stops down well and seems to hit its stride optically at f/5.6 to f/8 during my time with it.
In terms of “look”, I’d place this lens as a “bridging” lens, with a “look” that possesses elements of both Leica’ Mandler-era design and some of its modern aspherical optics. There is a certain smoothness, demonstrated by many classic lenses, that can be seen in images captured with MATE, but microcontrast is maintained. In fact, I have been very impressed by how much detail the MATE captures. Fine details are resolved, but the lens continues to paint with a broader brush. Contrast is medium to high, consistent with its utilization of aspherical optical elements. Color reproduction is quite accurate, though not to the level of Leica’s APO lens designs. Overall, I very much enjoy the look of the MATE, and hope that the images that I share with you are representative of this lens’ output.
In practice, I have come across a couple of issues with the MATE that are worth mentioning. Due to its complicated design, switching focal lengths involves a complex set of movements of the lens elements within the lens. In practice, I have noted that switching between focal lengths occasionally causes errors in frame-line placement. With a bit of gentle fiddling of the focus length barrel, frame lines do snap into place, but in the interest of full disclosure, this behavior appears to one of the MATE’s eccentricities. Second, in conditions where a bright light source is positioned at the edge of the image, the lens can flare. This behavior only seems to be demonstrated, on occasion, at the 50 mm focal length. I have heard that this tendency to flare was corrected in later versions of the lens (I have the first version), via using flare-reducing paints within the lens’ internal barrel.
In use, the MATE is both limiting and liberating. For those of you who are in love with shooting “wide open” and getting dramatic foreground/background separation, the MATE simply is not the tool for the trade, as it is limited by its maximal f/4 aperture. For those of you used to getting close to your subjects with lenses such as the 50 mm f/1.4 Summilux or 35 mm f/2 Summicron (with minimal focus distances of 0.7 meters), the MATE gets you as close as 1 meter from your subject, so your framing of subjects can’t be quite as tight as with many of Leica’s prime lens offerings. The lens is somewhat large for a Leica lens, which might make some purists, who value small lens-size, squirm in discomfort.
Conversely, the MATE can be quite a liberating lens to use. The first, and obvious benefit, is having one lens with 3 utilizable focal lengths. In practice, not having to constantly switch lenses to utilize a particular focal length can be a blessing. This is why Canon and Nikon have been so successful in marketing and selling their zoom lenses, despite reduction in optical performance in those zoom options. Particularly, when traveling, having a one lens, 3-focal-length option, particularly with a focal length range as useful as 28-50 mm, can be a true blessing. Second, when traveling in dusty places and crowded space, keeping the lens attached to the camera will be enough to save your sensor from substantial dust contamination. Third, while some may find the f/4 aperture as a limitation, others might feel that limiting your aperture options to f/4 can promote creativity and increase thehit rate for in-focus captures. The MATE can become more of a “storytelling lens” by producing less background blur, forcing the photographer to consider background elements in his or her compositions. Many photographers suggest that the true test of a skilled photographer is to candidly and successfully frame the photographed subject in its background; in essence, to tell a story in this manner. I’ll leave further debates on this topic to you, but the fact of the matter is that the MATE’s f/4 aperture is absolute.
In my mind, the most important convenience of the MATE comes during travel. In today’s era of minimizing space and traveling compactly, optimizing your equipment choices becomes very important. I have commented before that I believe that the Leica M9 is an outstanding camera to travel with, and part of this is its compact size and form factor. Pairing the MATE with your Leica M proves quite a versatile travel option. One can conceivably use the MATE as a 1 lens-travel solution. Many photographers favor its 3 focal lengths (28, 35, and 50 mm) for 90% of their photographs, and thus the MATE covers the range well. Personally, I’d pair the MATE with a wider aperture prime lnes for low light shooting and a longer lens (such as the wonderful 90 mm elmarit, reviewed by Steve here) for telephoto work. But that’s me.
The Leica Tri-Elmar 28-35-50 mm f/4 stands as a pinnacle of Leica lens engineering and design. It is both optically and mechanically remarkable. It has its limitations, but if you are willing to work within its limitations, it may provide you with a wonderful and versatile option for daytime photography while on the run, or when size and capacity matters. It’s a one-lens option for both travel or circumstances where minimizing kit-size matters.
One final counter point: availability. Given its 9-year product cycle, not many MATE lenses were manufactured. It utilized lens elements that were relatively hard to manufacture, and its mechanical design made it challenging to manufacture. As a result, these lenses were quite costly to manufacture during their product run, and they remain quite expensive even now in the used market. People who buy these lenses tend to hang onto them, and thus, MATE lenses are often hard to come by on the used market. As of this writing, used Tri-Elmars range in price from $2,500-$4000, depending on version, optical condition, and cosmetics.
Leica appears to have abandoned its MATE enterprise for the time being. The Wide-Angle Tri-Elmar 16-18-21 mm f/4 Aspherical lens (WATE) remains the sole step zoom lens in Leica’s lens lineup. Leica appears to recognize that lower cost lens options are quite popular, as its Summarit line has been quite successful. With many newbies entering the fray of rangefinder photography, controlling lens costs will remain important. This hasn’t stopped Leica, however, from manufacturing lenses like the Noctilux 50 mm f/0.95 asph and 35 Summilux aspherical, so in my mind, there is a place for pricier and niche lenses in the Leica lens line up. I wouldn’t be surprised if Leica were to decide to manufacture a new MATE someday, but I don’t think that day is coming soon. For the time being, should you have interest in this lens after reading this article, keep your eyes open for a used copy. IF you happen to get one, you’ll be duly rewarded with a lovely lens that’s a powerful photo-making tool!
Versatility: 28 mm, 35 mm, and 50 mm, all in one lens housing
Image quality: Up to par with Leica’s prime offerings
Rich and complex lens rendering, a combo of modern and classic looks.
Travel lens extraordinaire
Build quality: Up to Leica’s usual excellence
Size. It’s big, but not huge
f/4 maximal aperture. Limiting in some ways, liberating in others
Mechanical complexity. If you break it, good luck getting it repaired.
Occasional flare at the 50 mm setting

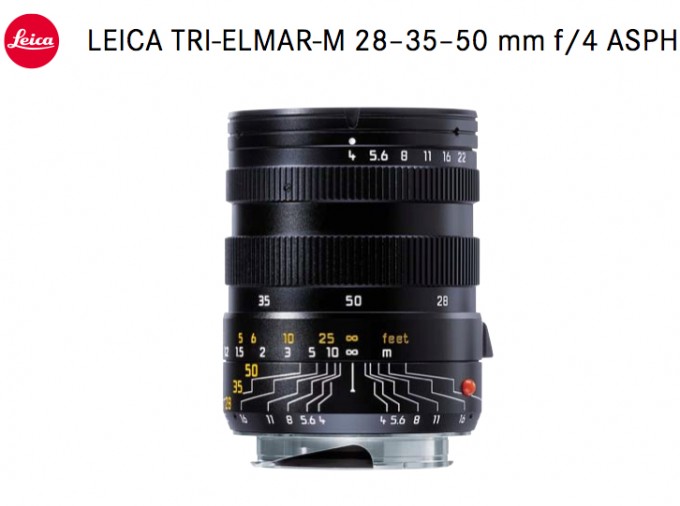

Images of lens were used from Leica’s MATE brochure (PDF), and technical specs were found on the Leica Wiki site.
